Boat Handling Jacks

The Original Yardarm™ Jack, And Still The Best.
Original Yardarm Boat Handling Jack

Key Benefits:

  • Work station for bottom repair, cleaning & painting
  • Trailer rolls in or out past jacks, allowing you to take boats on or off trailers easily
  • Jacks have a safety lock allowing boats to be left on jacks indefinitely
  • Jacks can be used on dirt, gravel, black top or cement
  • Jacks can be used anywhere: shop, yard, showroom
  • Lifts boats up to 40,000 lbs (18,100 kg) using 4 jacks
  • 10 minute boat placement
  • 20" vertical lift (50.8 cm)
  • Lifts big boats right off the transport truck
  • Allows fast and easy trailer to trailer exchange
  • Expedite boat show setup. No waiting for a crane
  • Powder Coat Tough Finish
  • All hardware is zinc plated for corrosion resistance (nuts, bolts, shafts, etc.)
  • 10" pneumatic tires w/zinc plated wheels for ease of mobility on rough surfaces
  • Includes tethered jack arm pin so it can't be misplaced
  • Optional galvanized finish for extra durability in salt water applications
  • Works down to -25°F (-32°C)

Set Of 4 Includes:

(4) Jacks (4) Straight Arms (4) 10" (35.4 cm) Drop Arms
(4) Standard Contact Pads - 4" x 18" (10.1 cm x 45.7 cm)

Part Numbers:

10-YARDARM Full Set (4 Jacks)
10B-YARDARM Half Set (2 Jacks)
10A-YARDARM Single (1 Jack)

Yardarm Hydraulic Boat Jack Warranty5 Year / 10 Year Warranty:

Yardarm hydraulic boat jacks now feature a 5 year warranty on moving parts and a 10 year warranty on the structural components. We stand behind our product because it stands under yours.

Click Here For Full Warranty Terms


Accessories & Capacities:

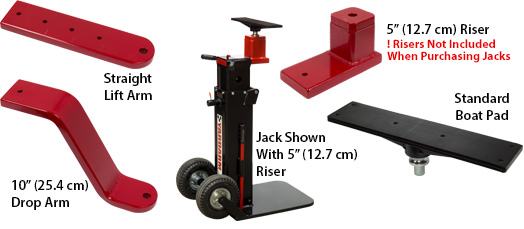

Yardarm Boat Jack Accessories

Max Capacity Each Jack: 10,000 lbs (4,500 kg)

Lift Arms

Capacity Each Vertical Range Part No. Each
Straight Arm
(4 Positions)
1st Pin Hole: 2,000 lbs (900 kg) 33" - 52"
(83.8 cm - 132 cm)
15A
2nd Pin Hole: 4,000 lbs (1,800 kg)
3rd Pin Hole: 6,000 lbs (3,600 kg)
4th Pin Hole: 10,000 lbs (4,500 kg)
5" (12.7 cm)
Drop Arm
2,500 lbs (1,125 kg) 28.5" - 47.5"
(72.4 cm - 120.6 cm)
11A
10" (25.4 cm)
Drop Arm
2,500 lbs (1,125 kg) 23.5" - 42.5"
(59.7 cm - 107.9 cm)
12A
15" (38.1 cm)
Drop Arm
2,500 lbs (1,125 kg) 18.5" - 37.5"
(47 cm - 95.2 cm)
13A
20" (50.8 cm)
Drop Arm
2,500 lbs (1,125 kg) 12.5" - 31.5"
(31.8 cm - 80 cm)
14A

Risers

Capacity Each Vertical Range Part No. Each
5" (12.7 cm) Riser 10,000 lbs (4,500 kg) 38" - 57"
(96.5 cm - 144.8 cm)
16A
10" (25.4 cm) Riser 10,000 lbs (4,500 kg) 43" - 62"
(109.2 cm - 157.5 cm)
17A

Boat Contact Pads

Description Part No. Each
4" x 18" Pad
(10.1 cm x 45.7 cm)
Standard Pad 18A
6" x 30" Pad
(15.2 cm x 76.2 cm)
Large Pad For Boats Over 15,000 lbs (6,900 kg) 19A

Yardarm Hydraulic Boat Jack Manual Manual: (Includes Parts List)

Boat Handling Jacks Manual

Image Gallery:

Click Images To Expand

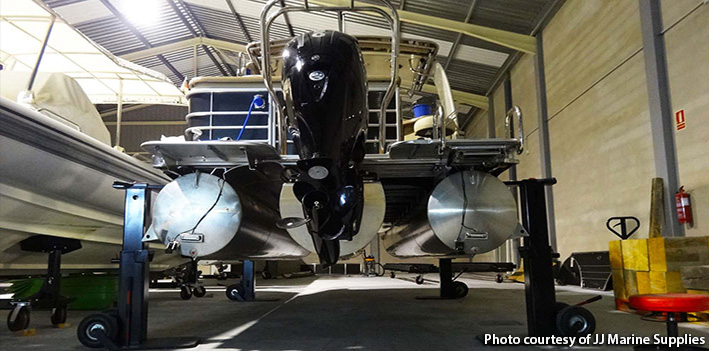

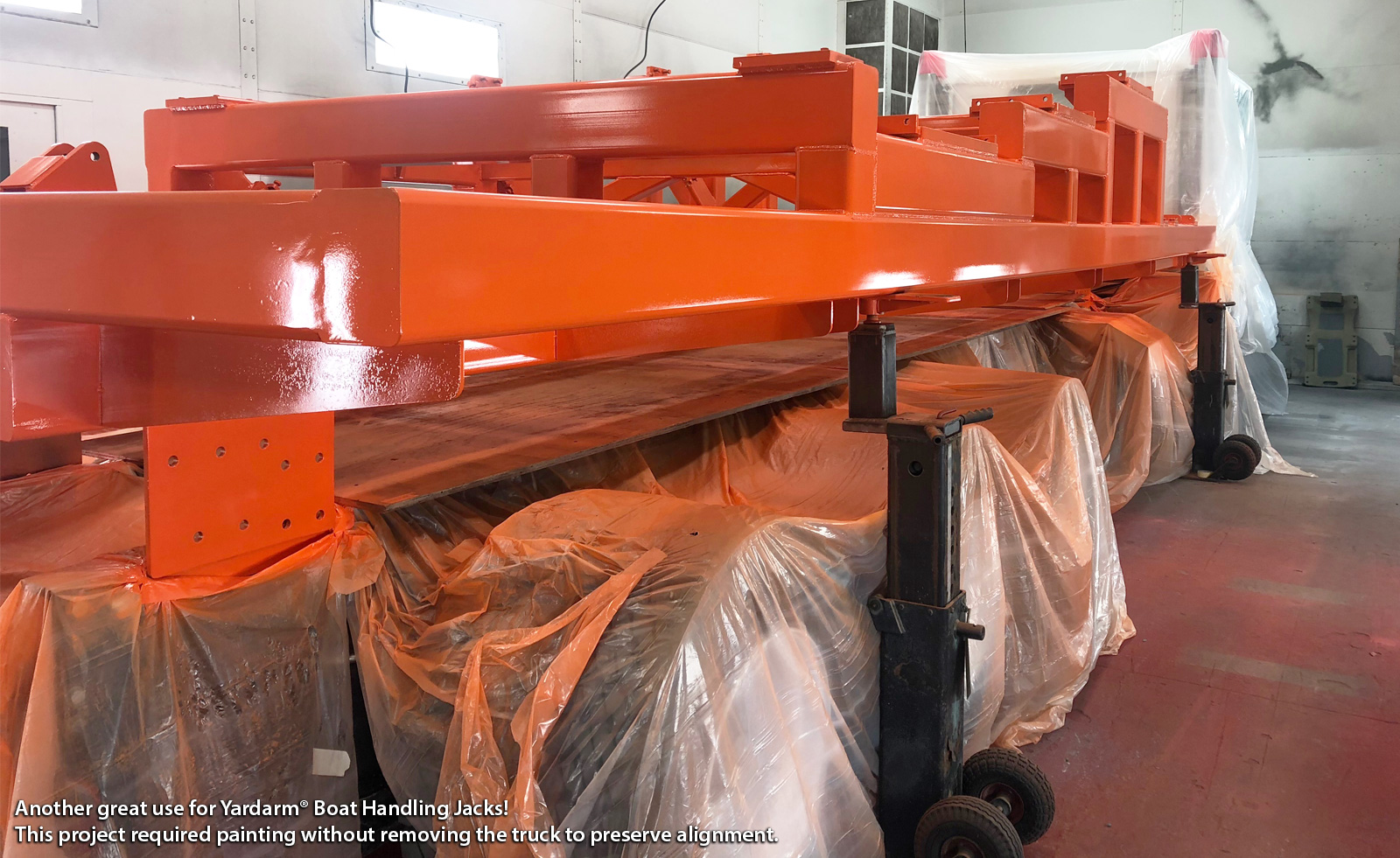

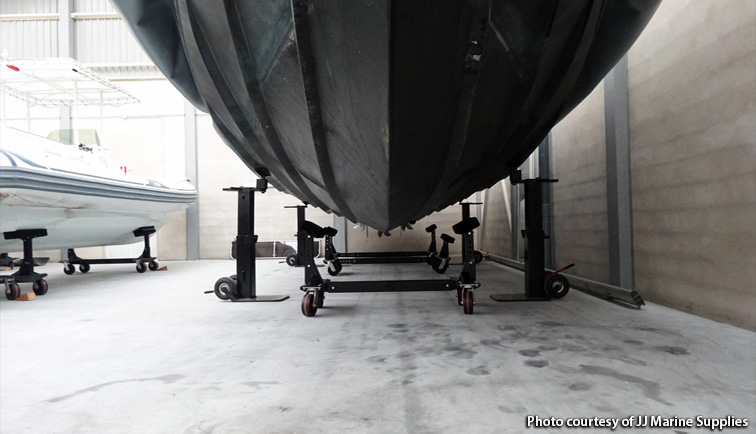

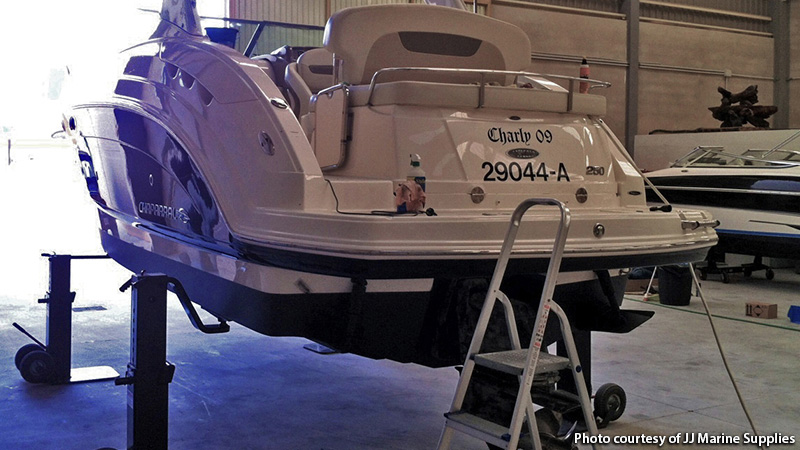

Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo Yardarm Boat Jack Image Gallery Photo

Jack Clearance DiagramBass Boats / Wide Trailers:

Yardarm Boat Handling Jacks should not be used to lift bass boats or other types of boats where the trailer is wider than the boat. There may not be enough clearance to remove the trailer once the boat is raised. Our jacks feature 12" (30.5 cm) clearance from the face of the jack to the center of the lifting pads (all arm options).

Back to Top
